Augmented Testing Study

Author

Andreas Bauer

Introduction

This document contains a descriptive analysis of the effect of Augmented Testing on the relative duration of GUI-based testing. We are mainly visualizing the data as bar and violin plots.

Load libraries

suppressPackageStartupMessages(library(caret))
suppressPackageStartupMessages(library(dplyr))
suppressPackageStartupMessages(library(vioplot))
suppressPackageStartupMessages(library(tidyverse))

Config

color_main <- "#02BFC4"
color_alt <- "#F7766D"

Import data

df_raw <- read.csv(file = "../data/results.csv", header = TRUE, sep = ",")

tc_names <- c("TC1", "TC2", "TC3", "TC4", "TC5", "TC6", "TC7", "TC8")

df <- df_raw %>% mutate(
  TC_sum = TC1_seconds + TC2_seconds + TC3_seconds + TC4_seconds + TC5_seconds +
  TC6_seconds + TC7_seconds + TC8_seconds,
  Online_session = as.logical(Online_session))

Seperate two treatments

df_pivot <- df_raw %>%
  pivot_longer(
    cols = c(matches("TC._treatment"), matches("TC._seconds$")),
    names_to = c("tc", ".value"), names_pattern = "TC(.)_(.*)"
  ) %>%
  select("ID", "tc", "treatment", "seconds")

df_only_m <- df_pivot %>%
  filter(treatment == "M") %>%
  pivot_wider(names_from = tc, values_from = seconds, names_prefix = "TC") %>%
  select(starts_with("TC")) %>%
  select(order(colnames(.)))

df_only_a <- df_pivot %>%
  filter(treatment == "A") %>%
  pivot_wider(names_from = tc, values_from = seconds, names_prefix = "TC") %>%
  select(starts_with("TC")) %>%
  select(order(colnames(.)))

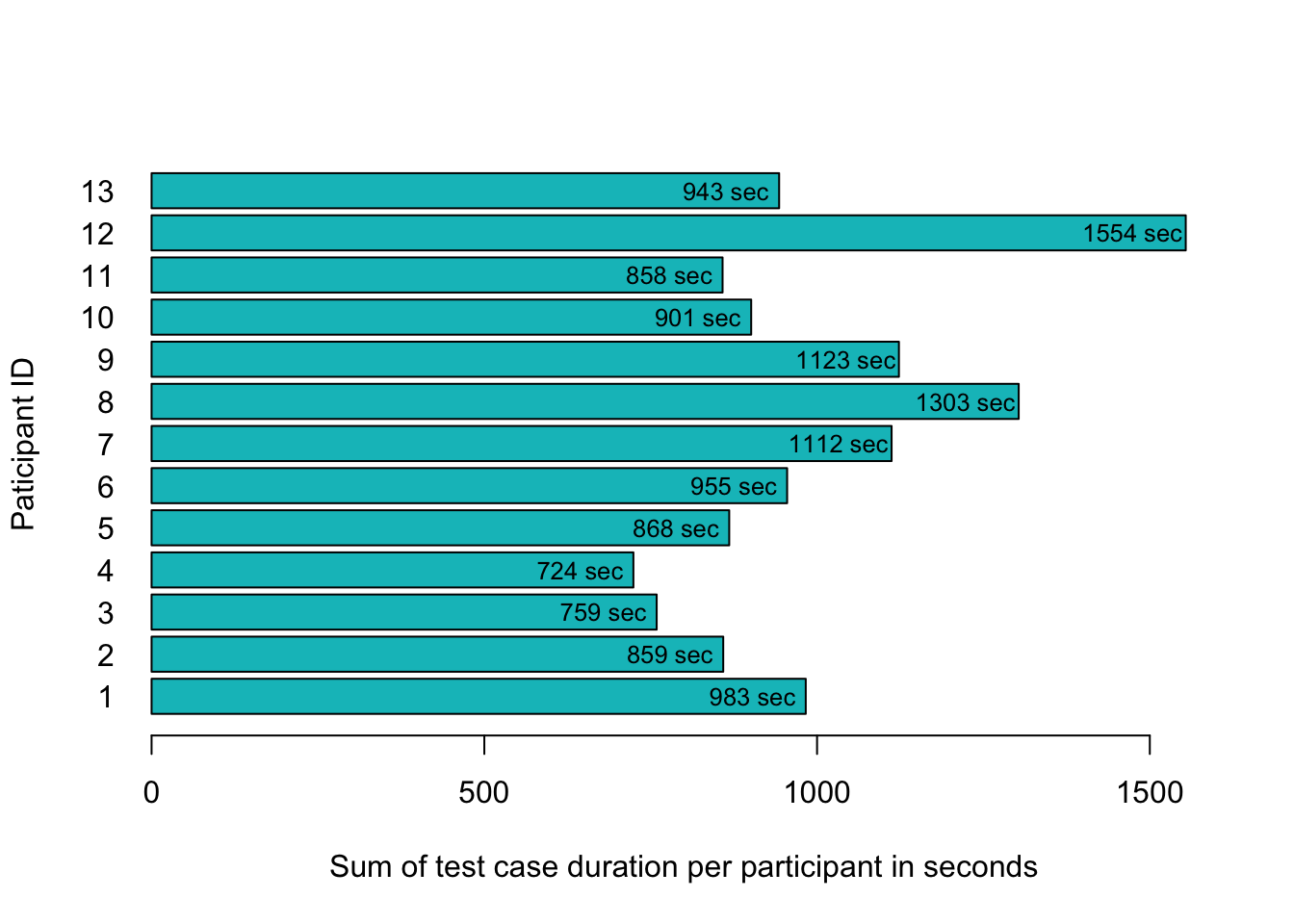

Plot total test execution time per subject

time_sum_bar <- barplot(height = df$TC_sum, names = df$ID,
  col = color_main,
  horiz = TRUE, las = 1,
  xlim = c(0, 1600),
  xlab = "Sum of test case duration per participant in seconds",
  ylab = "Paticipant ID"
)

text(time_sum_bar,
     x = df$TC_sum - 80, paste(df$TC_sum, "sec", sep = " "),
     cex = 0.8)

rec_time_sum_bar <- recordPlot()

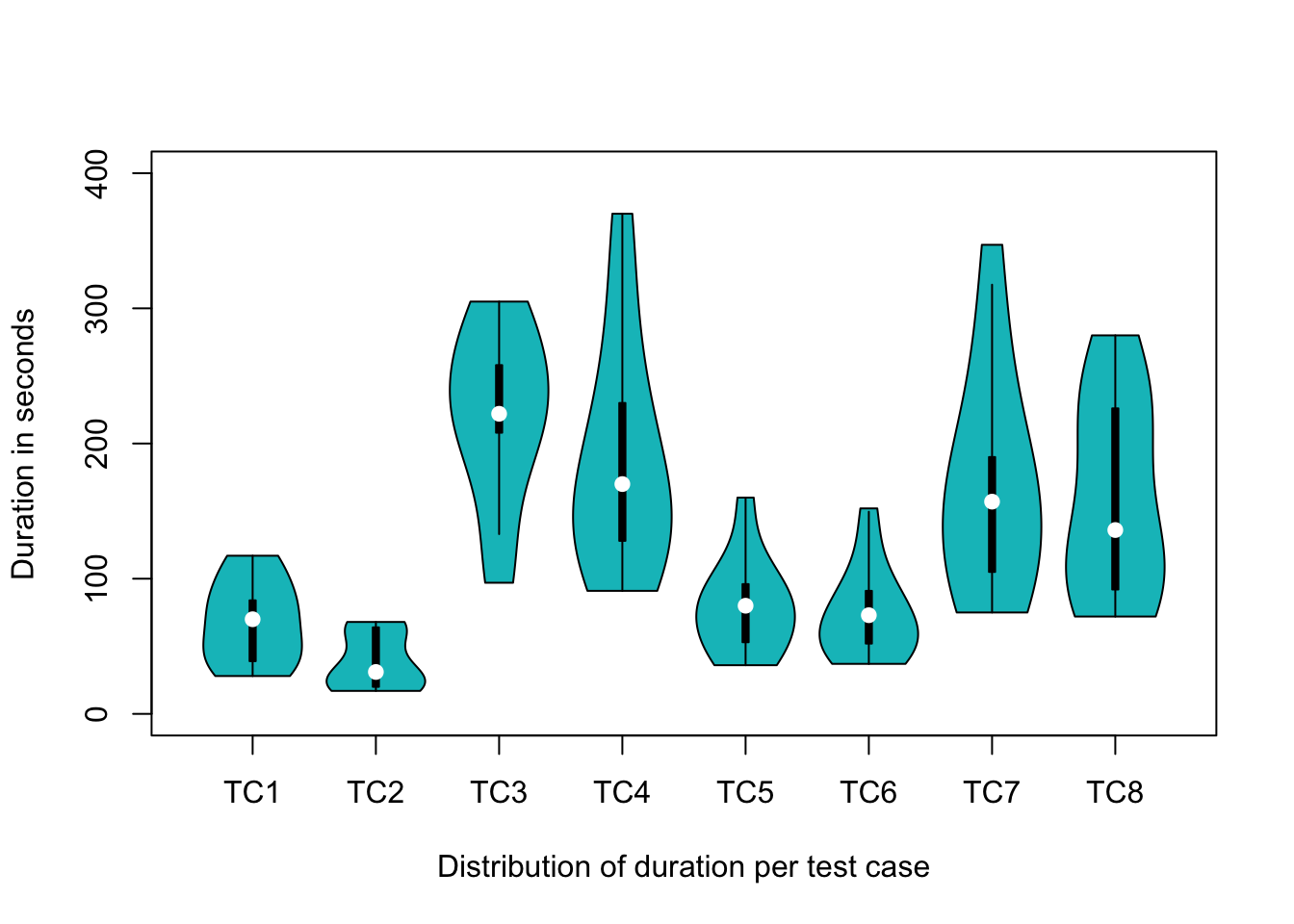

Violin plot per test case

data <- df %>% select(ends_with("_seconds"))

vioplot(data,
  col = color_main,
  names = tc_names,
  ylim = c(0, 400),
  ylab = "Duration in seconds",
  xlab = "Distribution of duration per test case"
)

rec_time_per_tc <- recordPlot()

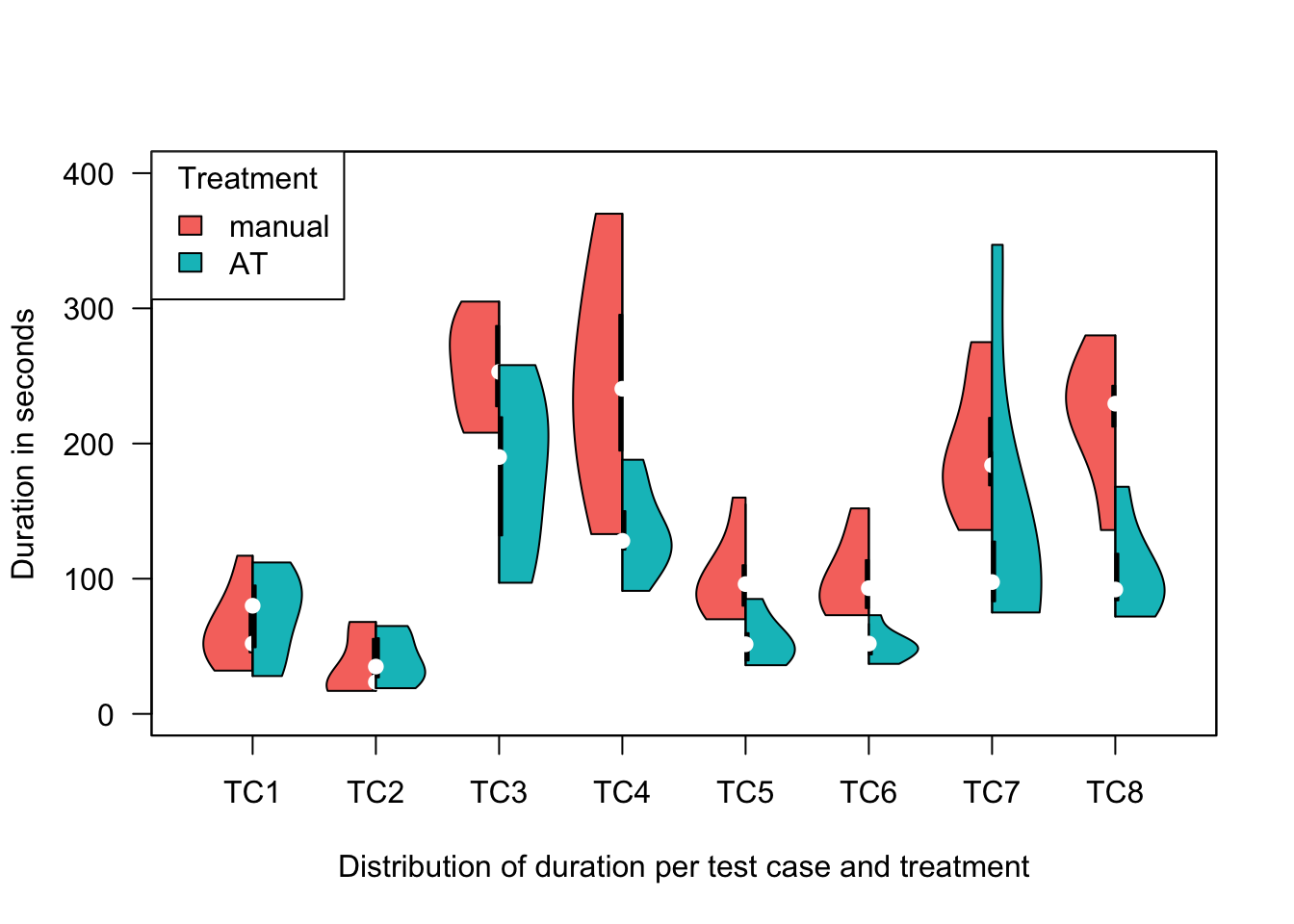

Violin plot per test case with seperation of the treatments

vioplot(df_only_m,
  side = "left",
  col = color_alt,
  ylim = c(0, 400),
  horiz = TRUE, las = 1,
  xlab = "Distribution of duration per test case and treatment",
  ylab = "Duration in seconds"
)

vioplot(df_only_a,
  side = "right",
  col = color_main,
  ylim = c(0, 400),
  horiz = TRUE, las = 1,
  add = TRUE
)

legend("topleft", fill = c(color_alt, color_main),
       legend = c("manual", "AT"), title = "Treatment")

rec_time_per_tc_split <- recordPlot()

Mean values per treatment

df_mean_tc <- df_raw %>%
  pivot_longer(
    cols = c(matches("TC._treatment"), matches("TC._seconds$")),
    names_to = c("tc", ".value"), names_pattern = "TC(.)_(.*)"
  ) %>%
  select("ID", "tc", "treatment", "seconds")

df_mean_tc <- df_mean_tc %>%
  group_by(tc, treatment) %>%
  summarise(mean_seconds = as.integer(round(mean(seconds), 0)), .groups = "drop")

df_mean_tc <- df_mean_tc %>%
  pivot_wider(names_from = treatment, values_from = mean_seconds) %>%
  mutate(diff_percent = as.integer(round(100 / M * (A - M), 0))) %>%
  select(tc, M, A, diff_percent)


head(df_mean_tc, 8)

# A tibble: 8 × 4
  tc        M     A diff_percent
  <chr> <int> <int>        <int>
1 1        64    73           14
2 2        36    41           14
3 3       256   180          -30
4 4       246   136          -45
5 5       101    54          -47
6 6       101    51          -50
7 7       196   139          -29
8 8       222   105          -53

Sum of mean values per treatment

total_a <- as.integer(sum(df_mean_tc$A))
total_m <- as.integer(sum(df_mean_tc$M))
total_diff_percent <- as.integer(round(100 / total_m * (total_a - total_m), 0))
sprintf("Total: %i (M) and %i (A) = %i percent",
        total_m, total_a, total_diff_percent)

[1] "Total: 1222 (M) and 779 (A) = -36 percent"

LaTeX table export

suppressPackageStartupMessages(library(xtable))

df_table <- df_mean_tc %>%
  add_row(tc = "Total", A = total_a, M = total_m, diff_percent = total_diff_percent)

print(xtable(df_table, type = "latex"), include.rownames = FALSE)

% latex table generated in R 4.3.1 by xtable 1.8-4 package
% Wed Sep 20 13:10:41 2023
\begin{table}[ht]
\centering
\begin{tabular}{lrrr}
  \hline
tc & M & A & diff\_percent \\
  \hline
1 &  64 &  73 &  14 \\
  2 &  36 &  41 &  14 \\
  3 & 256 & 180 & -30 \\
  4 & 246 & 136 & -45 \\
  5 & 101 &  54 & -47 \\
  6 & 101 &  51 & -50 \\
  7 & 196 & 139 & -29 \\
  8 & 222 & 105 & -53 \\
  Total & 1222 & 779 & -36 \\
   \hline
\end{tabular}
\end{table}

Export recorded plots as TikZ files

To create standalone tex files, you can add the standAlone parameter.

tikz('standAloneExample.tex', standAlone=TRUE)

suppressPackageStartupMessages(library(tikzDevice))

Test execution timer per participant

tikz("figures/time_per_subject.tex", width = 6, height = 4)
par(mar = c(2, 4, 1, 1)) # Set the margin
rec_time_sum_bar
dev.off

Violin plot of time distribution per test case

tikz("figures/time_per_tc.tex", width = 6.5, height = 4)
par(mar = c(2, 4, 1, 1)) # Set the margin
rec_time_per_tc
dev.off

Violin plot of time distribution per test case (both treatments)

tikz("figures/time_per_tc_split.tex", width = 6.5, height = 4)
par(mar = c(2, 4, 1, 1)) # Set the margin
rec_time_per_tc_split
dev.off
